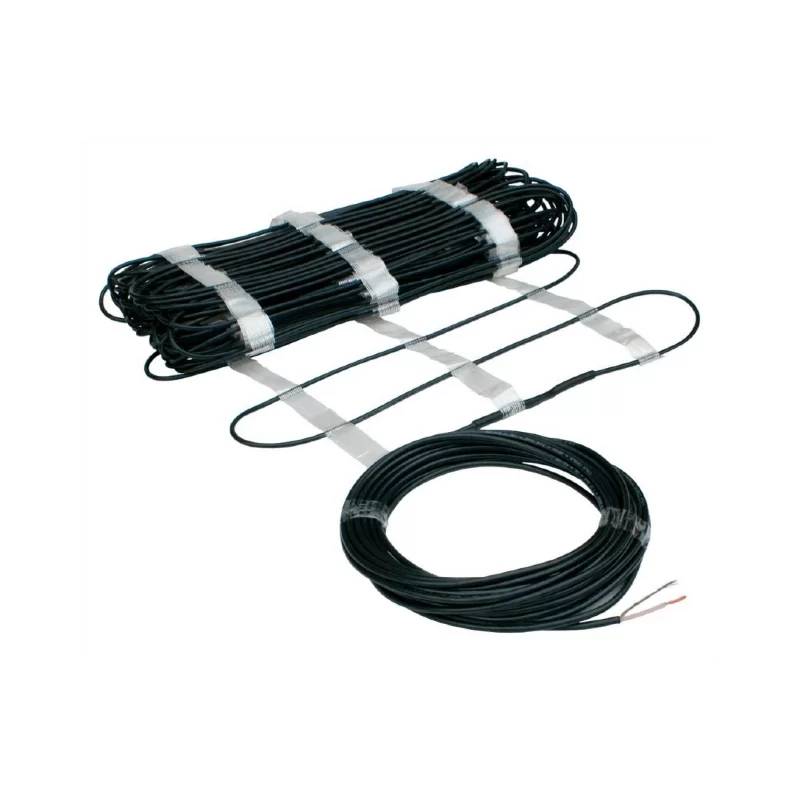

Heating mat ADPSV 300 W/m2
Electrical heating mat for outdoor usage.
- Ideal solution for heating alleys, ramps, sidewalks, stairs
- Quick and easy installation
- Very easy installation when heating only car tracks
- Made with quality ADPSV heating cable
For current prices, availability and ordering:
office@ecofloor-bg.com
Description
The heating mats are designed for easy installation of heating on outdoor areas – alleys, ramps, sidewalks, parking lots and others. They are made with a quality ADPSV heating cable, with high mechanical resistance and pre-arranged coils, achieving a power of 300 W / m2 required for the operation of the anti-ice and snow system at subzero temperatures.
The heating mat can be installed in different types of flooring (sand, concrete, asphalt), but always according to the load on the outdoor area. When installing the heating mats in pedestrian areas, the cables can be installed in the supporting sand layer. When heating areas with a higher load, it is recommended that the mats be placed in a layer of concrete or asphalt.
Product range
|
Product
|
Output [W]
|
Area [m2]
|
Length [m]
|
|---|---|---|---|
|
23ADPSV 300/1-0,5
|
300
|
1
|
2
|
|
23ADPSV 300/1,5-0,5
|
450
|
1.5
|
3
|
|
23ADPSV 300/2-0,5
|
600
|
2
|
4
|
|
23ADPSV 300/2,5-0,5
|
750
|
2.5
|
5
|
|
23ADPSV 300/3-0,5
|
900
|
3
|
6
|
|
23ADPSV 300/3,5-0,5
|
1050
|
3.5
|
7
|
|
23ADPSV 300/4-0,5
|
1200
|
4
|
8
|
|
23ADPSV 300/5-0,5
|
1500
|
5
|
10
|
|
23ADPSV 300/6-0,5
|
1800
|
6
|
12
|
|
23ADPSV 300/7-0,5
|
2100
|
7
|
14
|
|
23ADPSV 300/9-0,5
|
2700
|
9
|
18
|
|
23ADPSV 300/10-0,5
|
3000
|
10
|
20
|
- The heating cable cannot be cut or shortened
- Heating cables must not touch each other or get tangled
