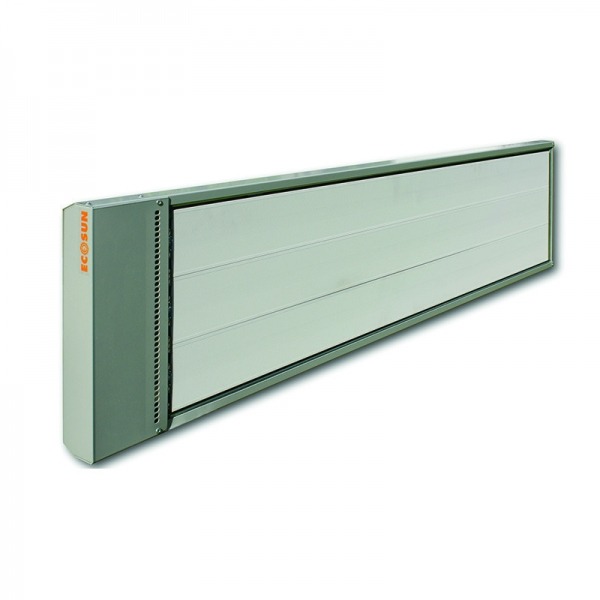

Infrared heating panel ECOSUN S+ Anticor

  • Infrared radiant panels for industrial heating
  • Heating of halls, warehouses, factories, gyms, large rooms
  • Anti-corrosion coating
  • High temperature radiation
  • For complete or zone heating

Description

ECOSUN S + radiant panels are designed for heating large rooms – heating of halls and warehouses, heating of factories and workplaces, industrial heating, heating of gyms. Ecosun S + Anticor are made of stainless steel and are constructed with a flat surface, which guarantees radiation at an angle of 180 ° C. The surface temperature of the radiating element is approximately 350 ° C. This temperature provides a relatively high radiated flux density. For this reason, the high-temperature panels are made for hanging in high places: 3 – 8 m. for complete heating, or 3.4 – 4.5 m. for zone heating.

Ecosun S + Anticor replaces previous Anticor panels made of surgical stainless steel, and today has even higher corrosion resistance than the original stainless steel panels. The coating of the panel has two layers – these coatings are designed for outdoor environments and are applied to the thin layers of metal parts made of AluZinc. The bonding material is made of the same material and thus electrochemical reactions and corrosion of the parts cannot occur. However, if corrosion occurs in any way, and the connecting elements have come off, the panel is designed so that the internal components are prevented from damage.

Product range

Type Output Voltage Rating Dimensions Weight Recommended installation Qty on pallet Cat. No.
[W] [V] [IP] [mm] [kg] [pcs]
ECOSUN S+ 09 Anticor 900 230 IP 44 1550x150x60 7.2 According to individual conditions,
for full area
5 – 8 m,
zonal 3.4 – 4.5 m
58 5401552
ECOSUN S+ 12 Anticor 1200 5401554
ECOSUN S+ 18 Anticor 1800 230 / 400 2N 1550x250x60 11.6 39 5401556
ECOSUN S+ 24 Anticor 2400 5401558
ECOSUN S+ 30 Anticor 3000 230 / 400 3N 1550x350x60 16.0 26 5401560
ECOSUN S+ 36 Anticor 3600 5401562
