FENIX TFT

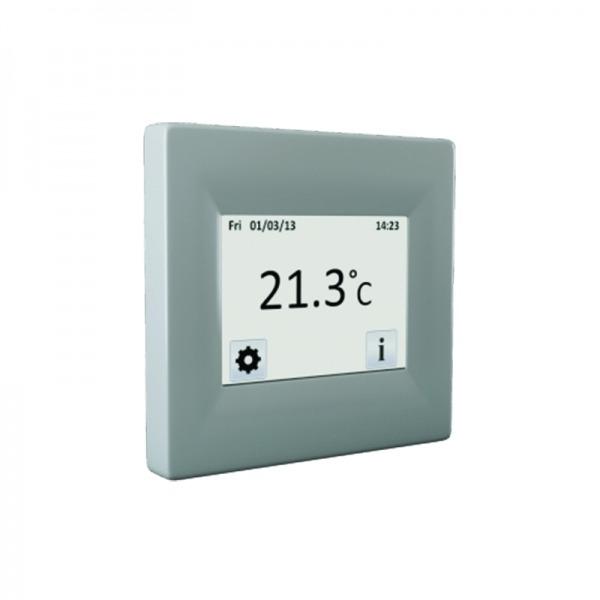

Programmable digital thermostat with touch screen.

Description

A digital thermostat with a touch-screen display, the option of choosing a coloured background, CZ menu. Operating modes “floor only”, “room only”, “floor + room”, the option of measurement using two external (floor) probes, PWM (PID) regulation or fixed temperature difference. 4 pre-set programmes, 3 user programmes (10 temperature changes in 15 minute steps, the shortest time period being 1 hour), Modes: according to the programme, manual mode, holiday, party, non-freezing temperature, switched off. Switching contact 16A, range of temperature settings 5…35°C in 0.5°C steps, the option of setting a min and max floor temperature, calibration of sensors. A floor probe is included with the thermostat, installation on KU/KP 68. Rating IP 21.

Product range

Rating: IP 21
Switched current: 16 A
Temperature range – room: 5 … 35 °C
Temperature range – floor: 5 … 45 °C
Temperature attenuation: Via time programming
Heating indicator light: On display
Hysteresis: 0.5 K
Switch: no
