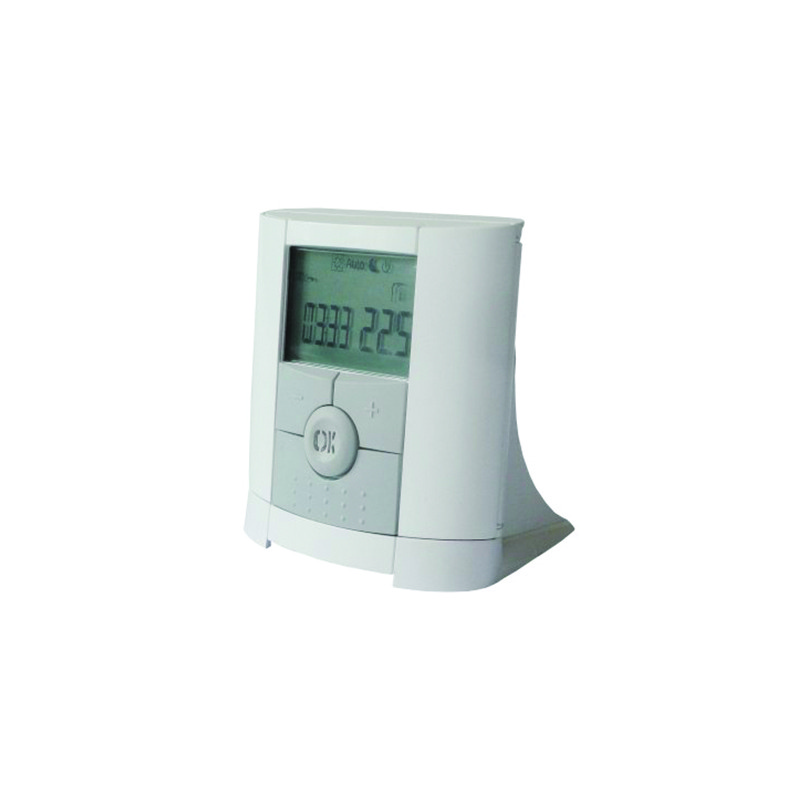

WATTS V22
For current prices, availability and ordering:
office@ecofloor-bg.com
Description
Parameters: operating modes Comfort, ECO, Stop, Anti-freeze protection, Holiday, 1-Week programme – interval for setting 30 min. Placement on a wall or independently on a stand (power supply: 2x AAA), programme back-up in EEPROM memory (10 years), 868 MHz bidirectional wireless communication, display of set/real temperature, reading of room temperature with an internal or cable sensor (both sensors cannot be used simultaneously; the cable probe isn´t included). The thermostat is also designed for a wireless central regulation system with the V24 control unit (modular system, can be retrofitted) – when connected in this way it reads the room temperature for the V24 control unit and enables temporary changes to be made.
Technical Information
| Placement: | KU68 / wall / stand |
|---|---|
| Power supply: | 2 x AAA 1.5V |
| Rating: | IP 30 |
| Insulation class: | II. |
| Number of channels (zones): | max. 4 (1x master + 3x slave) |
| Switched current for each zone: | – |
| Temperature range – room: | 5 … 37 °C |
| Temperature range – floor: | 5 … 37 °C |
| Temperature attenuation: | Via time programming |
| Heating indicator light: | On display |
| Hysteresis: | PWM/hystereze 0.5 °C |
| Switch: | Software |
| Programme back-up: | 10 years (E-EPROM) |
