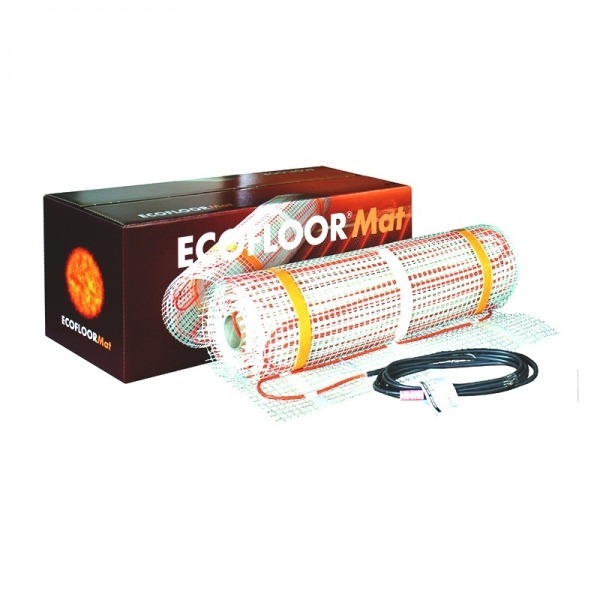

Heating mat LDTS 160 W/m

Heating mat for underfloor heating in the bathroom, kitchen, hallway.

  • Two-wire heating cable with full shielding
  • Fiberglass mesh with a width of 50 cm
  • Self-adhesive tape on the lower surface
  • Very easy installation
  • Efficient and economical
Category:

Description

The heating mat LDTS – 160 W / m has a heating cable with a power of 160 W / m distributed on pre-glued coils on a fiberglass mesh, ensuring the distance between the powers. The underside of the fiberglass mesh has a self-adhesive coating, which further facilitates the installation of electric underfloor heating. The heating mats are available in different lengths with a width of 50 cm and an additional 3 m cold cable. For the proper functioning of the system and the precise control of the temperature there is a wide range of extremely high quality thermostats, with temperature proble for floor / floor + air.

Product range

Product
Output [W]
Area [m2]
Length [m]
23ADPSV 300/1-0,5
300
1
2
23ADPSV 300/1,5-0,5
450
1.5
3
23ADPSV 300/2-0,5
600
2
4
23ADPSV 300/2,5-0,5
750
2.5
5
23ADPSV 300/3-0,5
900
3
6
23ADPSV 300/3,5-0,5
1050
3.5
7
23ADPSV 300/4-0,5
1200
4
8
23ADPSV 300/5-0,5
1500
5
10
23ADPSV 300/6-0,5
1800
6
12
23ADPSV 300/7-0,5
2100
7
14
23ADPSV 300/9-0,5
2700
9
18
23ADPSV 300/10-0,5
3000
10
20

Basic principles and requirements

  • The heating mats should be placed at least 5 cm away from peripheral walls
  • The heating mats should not be placed under fixed furniture and massive objects – kitchen appliances, bathtubs, showers, fixed toilets and others.
  • Minimum 6 cm thermal insulation and 3 cm screed or specialized reinforced thermal insulation F-BOARD 6/10 mm
  • The heating cables must not get tangled
  • While the fiberglass mesh can be cut easily, the heating cable is not cut or shortened
  • Fixed furniture can be easily bypassed by cutting the fiberglass mesh and securing the cable by hand, surrounding at a distance from the furniture

Installation

  1. Unscrew the heating mat according to the distribution
  2. When cutting the support net and reversing the direction, observe a minimum of 3 cm.distance between coils
  3. Surround the fixed furniture, removing the support net and bypassing the objects with the cable
  4. Apply the adhesive layer with a soft spatula
  5. Lay the tiles on small areas (up to 4 sq.m) immediately, and for larger areas 24 hours later
