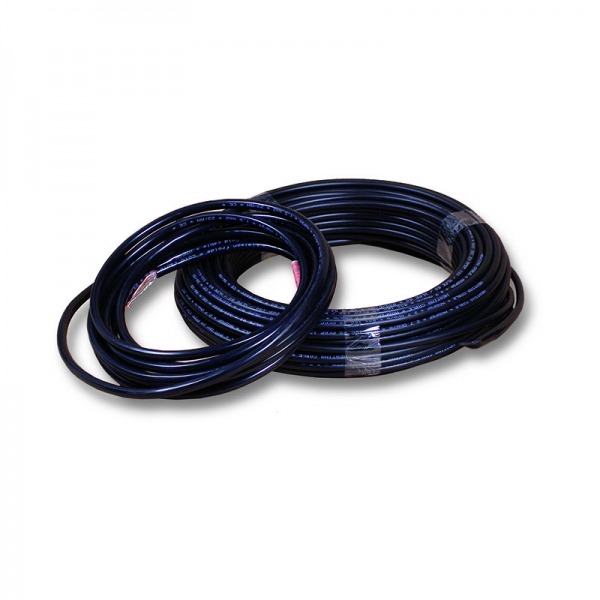

Heating cable MAPSV 30 W/m – 230 V
Heating cable for melting ice and snow in outdoor areas.
- Heating of alleys, stairs, loading ramps, sidewalks
- Full shielding and UV protection
- Very high mechanical resistance
- Long service life
For current prices, availability and ordering:
office@ecofloor-bg.com
Description
Heating cable with one wire with a full protective screen, suitable for heating outdoor areas – alleys, stairs, ramps, sidewalks, terraces and more. The heating core has a braid of 7 wires, which has two layers of insulation, followed by a protective braid and then an outer shell with UV protection. The quality of the heating cable allows for a very high mechanical resistance and very long service life. The maximum power of this cable is 30 W / m. The heating cable can be placed in concrete, in a sand layer or in the adhesive layer, when heating stairs and terraces.
Product range
MAPSV 30 W/m – 230 V
| Product | Output [W] | Length [m] |
|---|---|---|
| MAPSV 302100 | 2100 | 70.0 |
| MAPSV 302500 | 2500 | 84.6 |
| MAPSV 302950 | 2950 | 98.0 |
| MAPSV 303200 | 3200 | 106.7 |
| MAPSV 304000 | 4000 | 134.9 |
| MAPSV 304800 | 4800 | 162.1 |
| MAPSV 306300 | 6300 | 209.9 |
Basic principles and requirements
- The heating cable cannot be cut, shortened or extended
- The heating cables must not be tangled
- When heating stairs, the heating cable must be placed in a groove at the edge of the step so that it is not damaged and compromised
