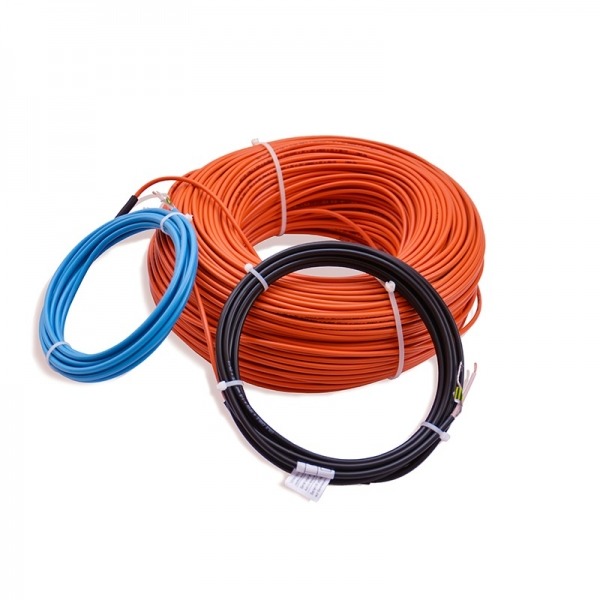

Heating cable PSV 15 W/m

Heating cable for underfloor heating under tiles.

  • Heating cable with full protective screen for use in dry or wet rooms
  • For new construction or floor repair
  • Efficient, economical and safe

Description

Heating cable for underfloor heating under tiles with a power of 15 W / m. The cable is single-wire, with a diameter of 4.5 – 4.8 mm, and an additional 5 m. power cords at both ends. It has high mechanical resistance, and its full protective screen allows it to be placed in wet rooms. Underfloor heating with a heating cable provides great freedom in the construction of the system, as the manual laying of the cable allows an individual approach to moving and non-standard rooms, as well as easy bypassing of fixed furniture.

Product range

Product Output [W] Length [m]
PSV 15200 200 13.7
PSV 15340 340 22.2
PSV 15420 420 28.1
PSV 15550 550 36.7
PSV 15660 660 44.7
PSV 15800 800 52.3
PSV 15880 880 58.6
PSV 15960 960 64.1
PSV 151070 1070 71.5
PSV 151210 1210 81.0
PSV 151300 1300 84.1
PSV 151580 1580 104.6
PSV 151900 1900 128.6
PSV 152200 2200 150.3
PSV 152800 2800 189.4
PSV 153400 3400 227.5

Basic principles and requirements

  • A distance of at least 5 cm from peripheral walls must be provided
  • The heating cable should not be laid under fixed furniture and massive objects – kitchen appliances, bathtubs, shower cabins, fixed toilets, etc.
  • Minimum 6 cm thermal insulation and 3 cm screed or the specialized reinforced thermal insulation F-BOARD 6/10 mm
  • The heating cable cannot be cut or shortened.
  • The heating cables must not get intertwined
  • Cable coils should not be less than 5 cm apart
  • The floor sensor of the thermostat of your choice is placed at an equal distance between the heating cables
